Trap Gear

Soft ADA Trap Cover Slim-Fit Design for sleeker fit.

Fast and easy installation with a high gloss PVC finish. Valve and supply covers flex 360° for braided supplies.

Product Details

• Trap Gear offers a superior high gloss finish, Flame & Smoke Rated material, and a soft, flexible, anti fungal, anti microbial PVC system that is easy to install with Velcro fasteners.

• The Slim Fit design provides a narrow, sleek appearance and can be cut to fit for customized sizing. The slim dimensions accommodate 1 1/4 inch traps for an ADA compliant and professional looking installation.

• Non sewn, fusion bonded molded technology allows installers to cut the material to size while leaving finished edges that will not unravel, creating permanent and professional installations.

• Valve and Supply Covers can flex a full 360° for installations over braided supplies and can also be trimmed to fit any required length.

Features

• Modern Design and Slim Fit

• PVC UV Inhibited, Anti Microbial and Anti Fungal

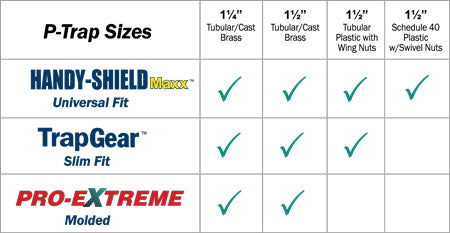

• Fits 1 1/4 inch traps and flexible braided supplies

Easy Installation

1. Measure and cut to length.

2. Fit the Trap Gear cover over the P Trap or valve and supply.

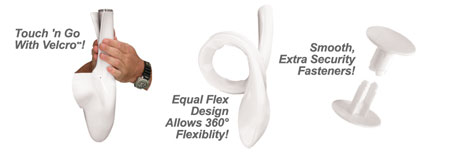

3. Press the internal Velcro strips together.

4. For extra tamper resistance, press and lock the Snap Fasteners together through the pre punched holes.

5. For an adjustable, tighter fit, align the Snap Fasteners where needed on each side of the material. Punch the hole with the Snap Fastener, then press and lock together.

Model Numbers

Part Number	Available Kits & Single Piece Products

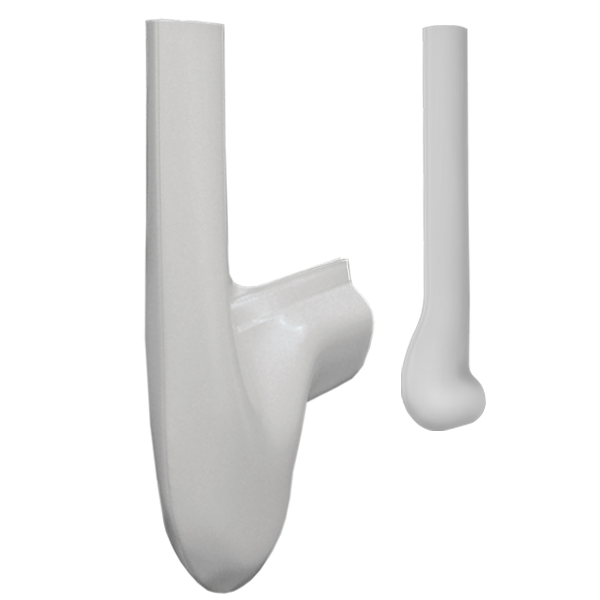

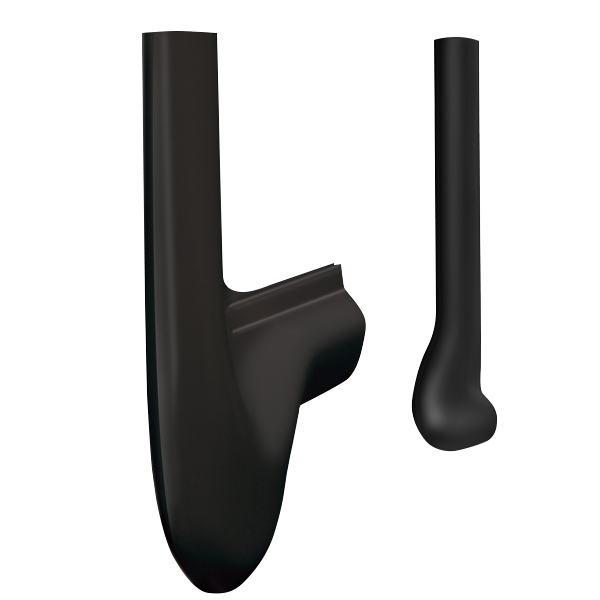

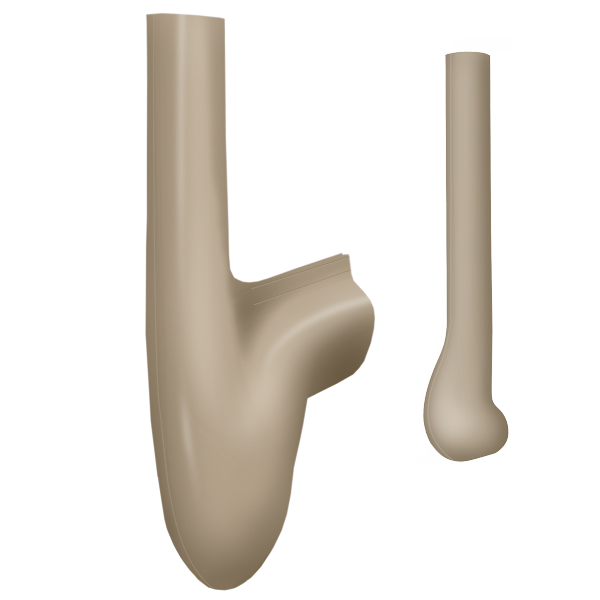

350	1 P Trap, 1 Valve & Supply Cover

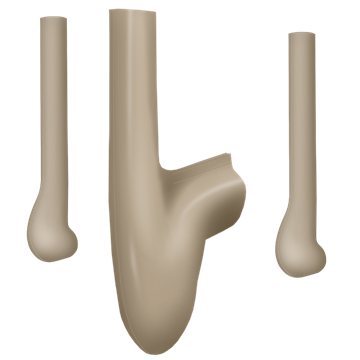

396	1 P Trap, 2 Valve & Supply Covers

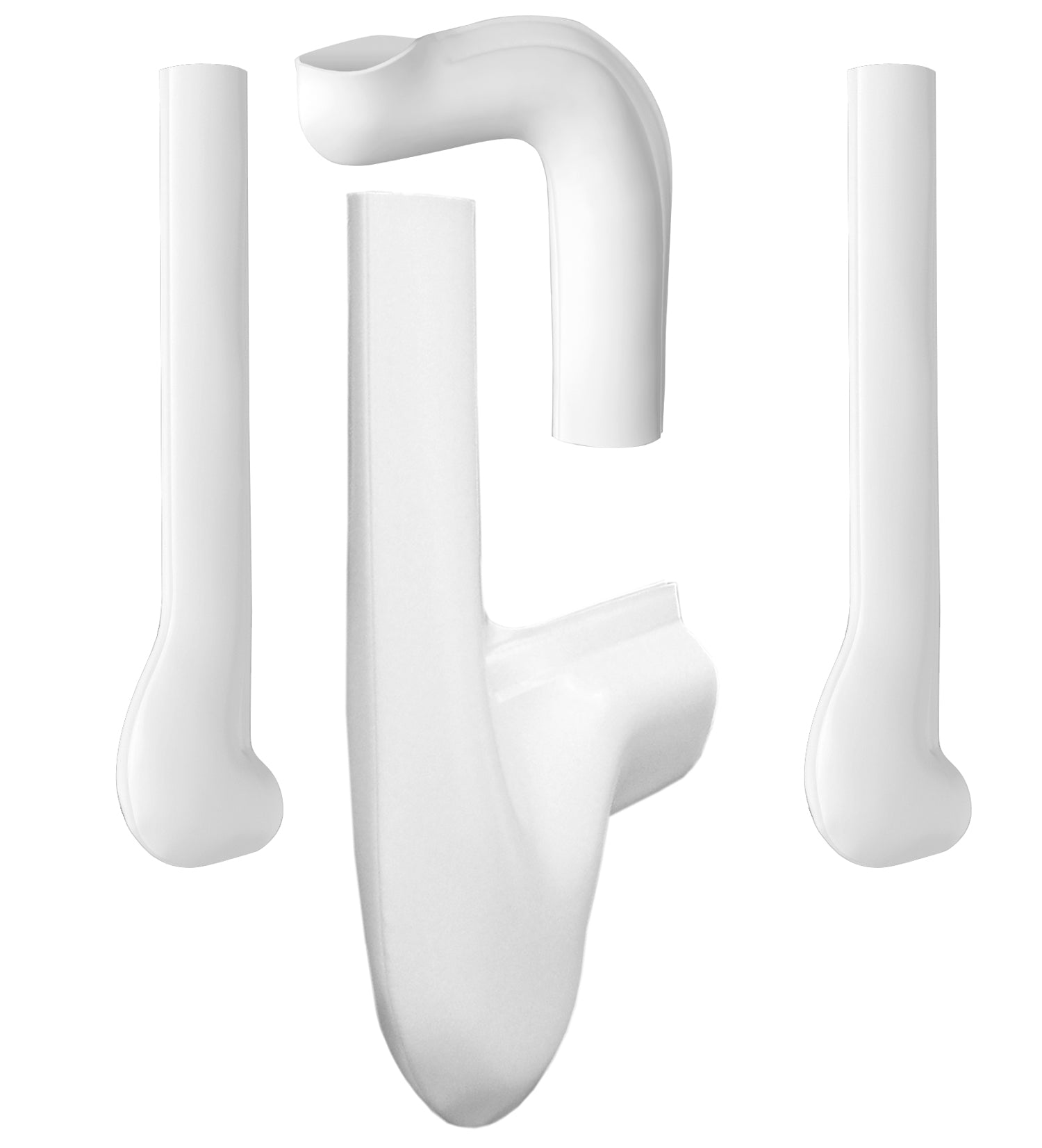

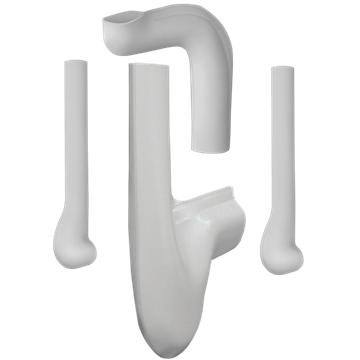

427	1 P Trap, 2 Valve & Supply Covers, 1 Offset Cover

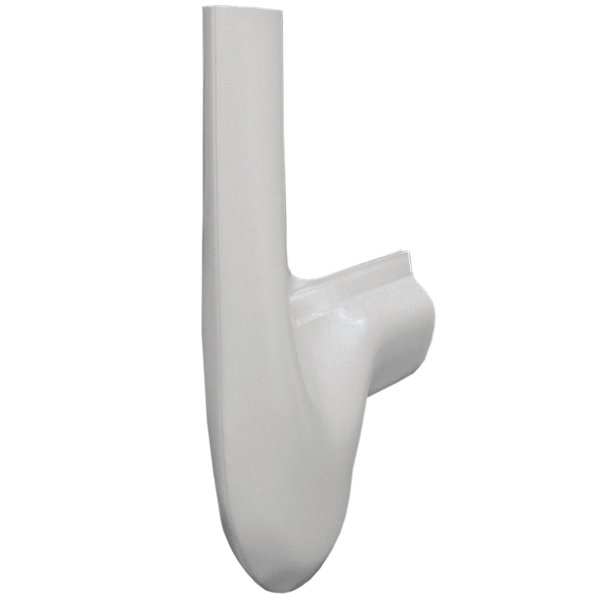

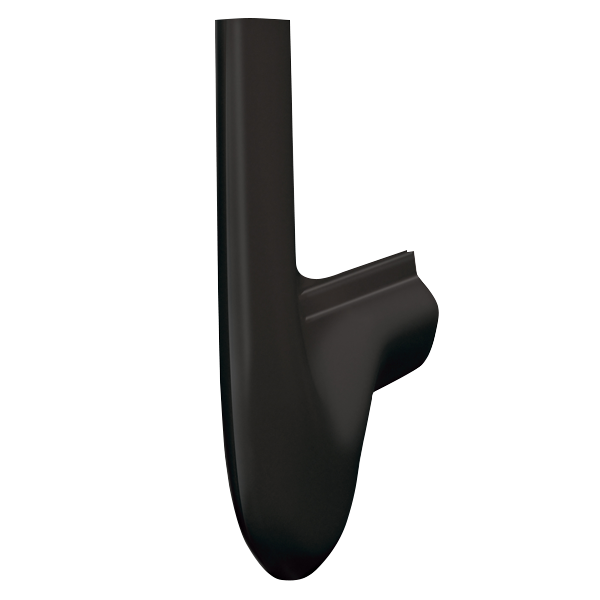

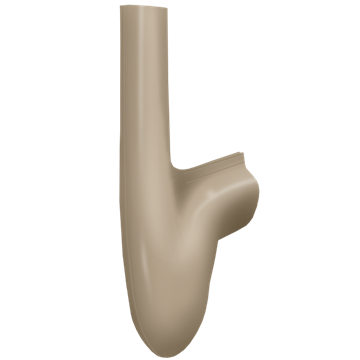

307	1 P Trap Cover

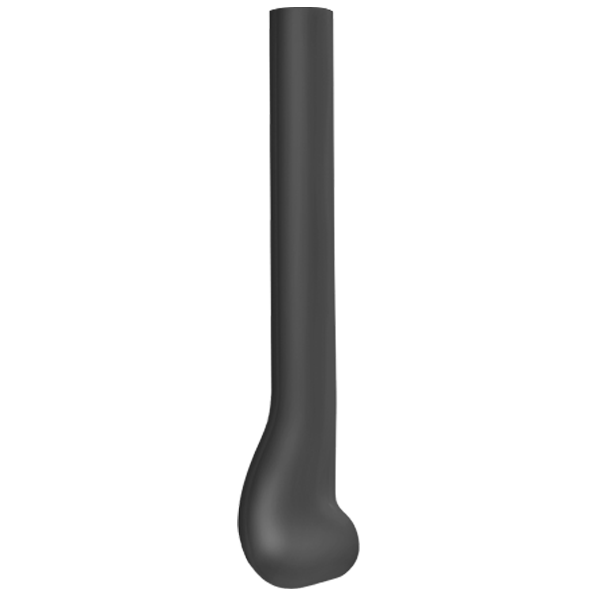

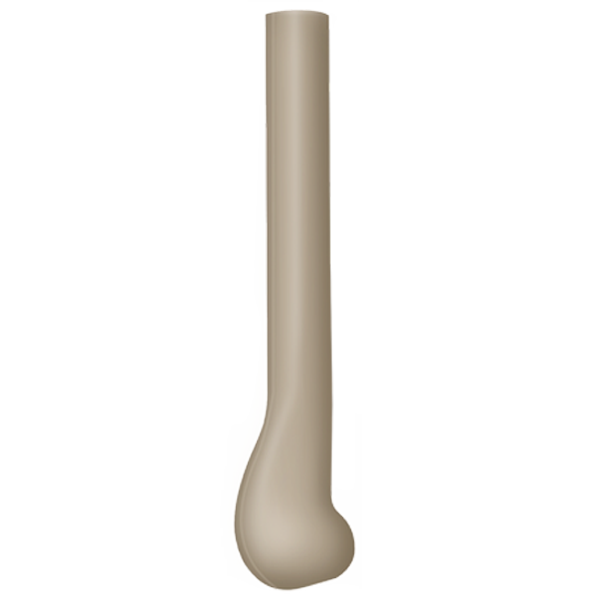

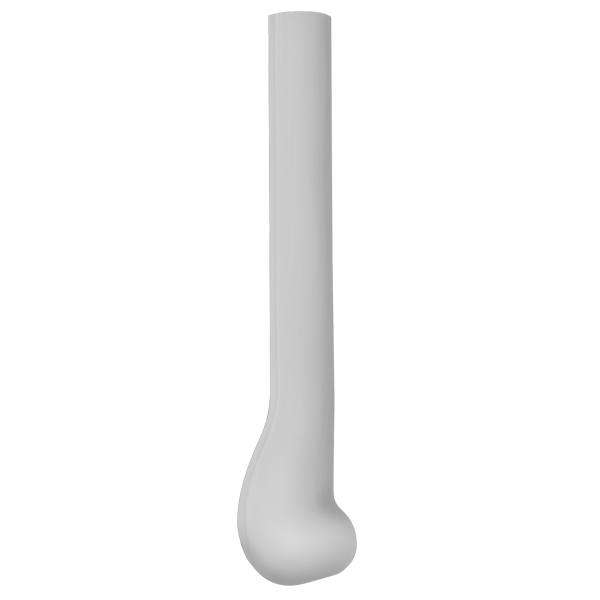

327	1 Valve & Supply Cover

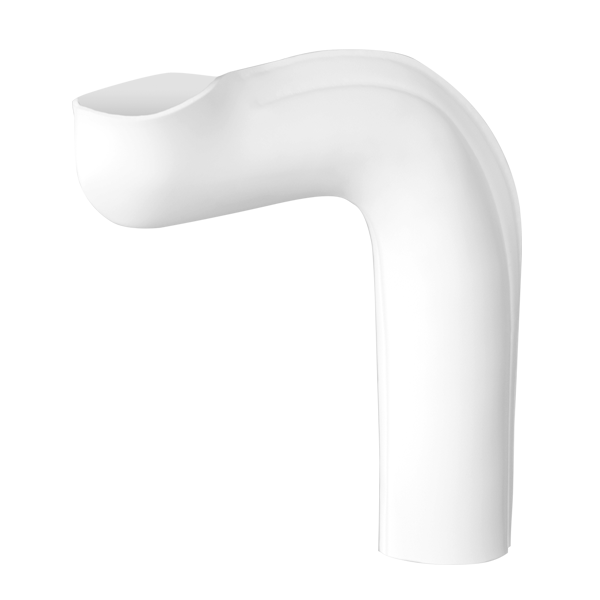

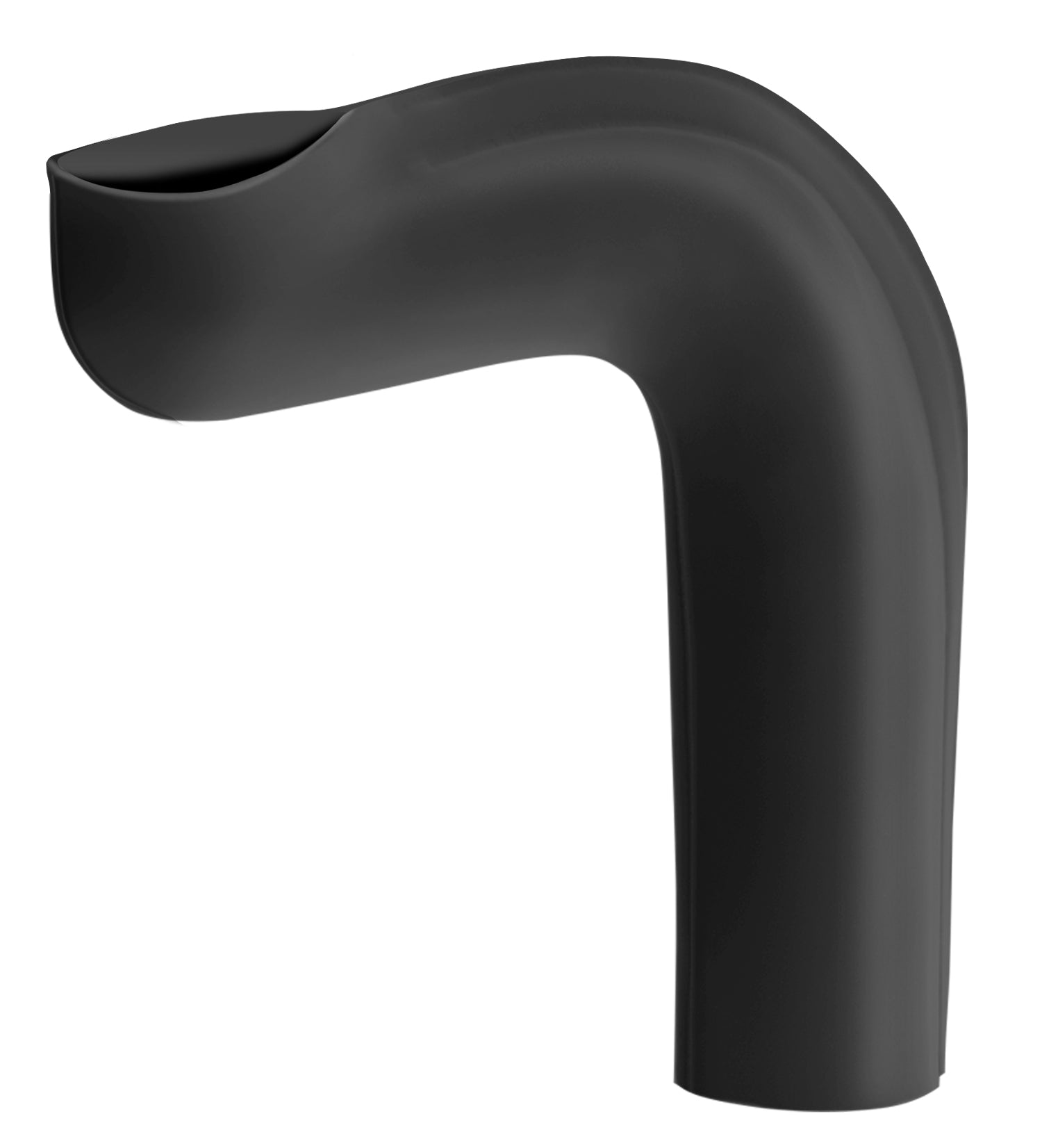

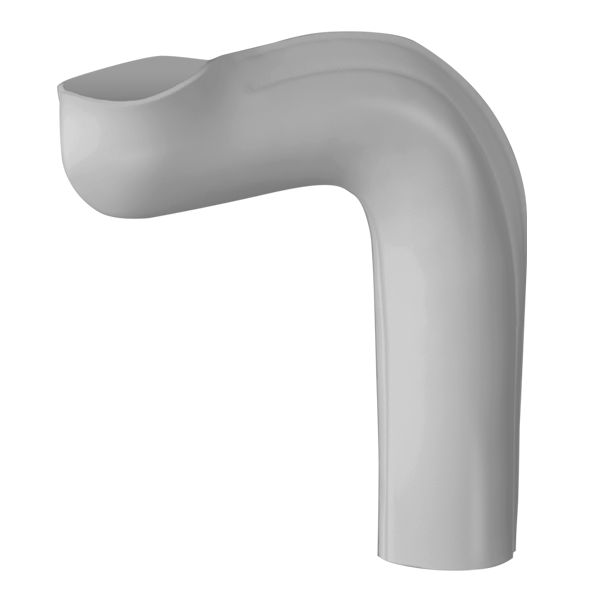

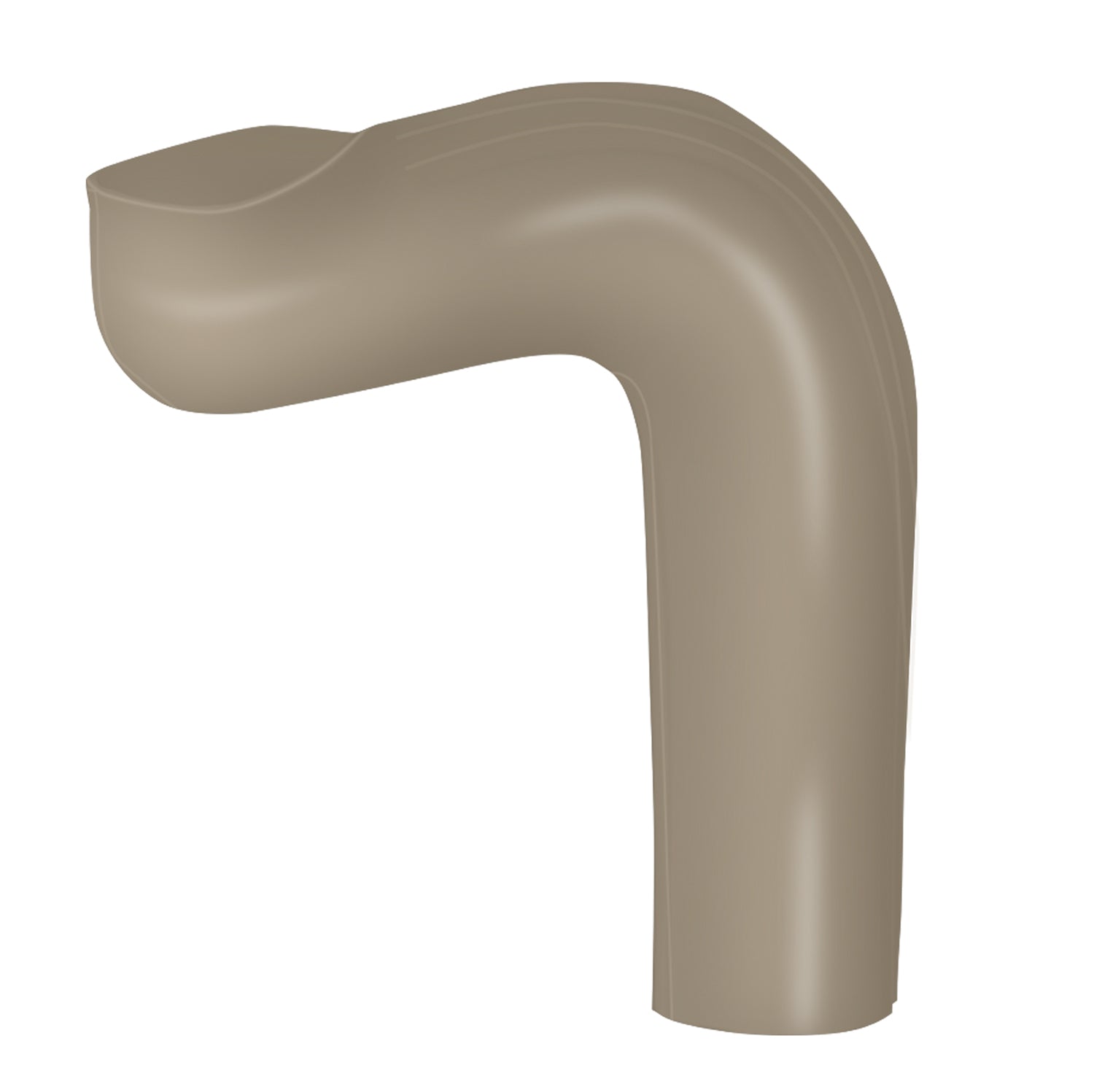

304	1 Offset Cover

Approved Material Testing

• ASTM E84: Flame and Smoke
• ASTM G21: Anti Microbial and Anti Fungal
• ASTM G153: Weatherization and UV Exposure
• ASTM E96: Moisture Permeability
• ASTM D570: Tensile Strength
• ASTM C177: Thermal Conductivity and Thermal Resistance
• ASTM C158: Thermal Conductivity and Thermal Resistance
• UPC/IAPMO PS 94 2012: Heat Penetration and Water Resistance

Codes & Standards Compliance

• ADA 4.19.4/ABA 606.5 rev.
• ICC/ANSI A117.1, Section 606.6
• Meets 2015, 2018 and 2021 IPC 404.3, UPC 403.3 and SPC Plumbing Codes
• Meets Code Required ASTM C1822, Type I Fire Smoke Rated Material
• Meets ASME A112.18.9
• UPC/IAPMO PS 94
