PRO EXTREME Molded ADA Compliant Under Lavatory Covers.

One piece design for fast, straight installations. The Full Rotation Option supports custom installations. No tools are required, and internal tear lines make sizing easy. Valve and Supply Covers include access caps that eliminate full removal during maintenance.
Skip to results list

Filters

8 items

Filter

Product Details

PRO EXTREME is a molded lavatory pipe protection system engineered to meet ADA requirements.

With a superior smooth, high gloss finish and antifungal, antimicrobial PVC, the one piece design saves time and labor compared with multiple piece products.

The smooth Snap Lock fasteners provide a secure and installer friendly connection. The PRO EXTREME system is easy to clean and remove for maintenance.

Valve and Supply Covers include a proprietary Valve Access Cap that allows maintenance without removing the entire unit.

A Full Rotation Option is also available for installations requiring a two piece configuration.

Features

• One Piece Design

• Smooth, High Gloss Molded PVC

• Full Rotation Option

• Snap Lock Fasteners

• UV Inhibited, Antimicrobial and Antifungal

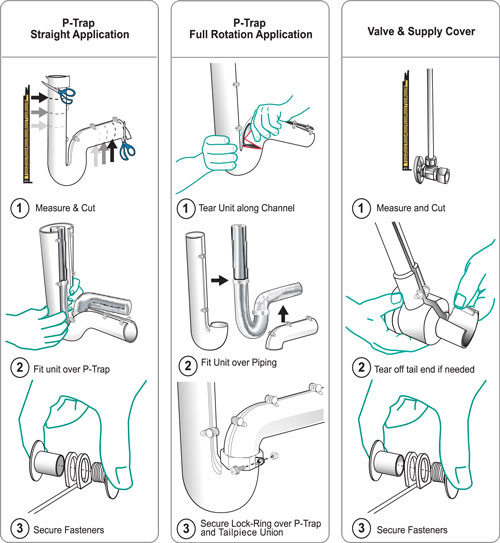

Easy Installation

Model Numbers

Part Number Available Kits & Single Piece Products
X4222 1 P Trap, 1 Valve & Supply Cover
X4333 1 P Trap, 2 Valve & Supply Covers
X4444 1 P Trap, 2 Valve & Supply Covers, 1 Offset Cover
X4111 1 P Trap Cover

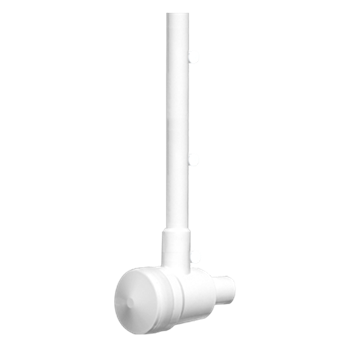

X4112 1 Valve & Supply Cover
X4114 1 Offset Cover

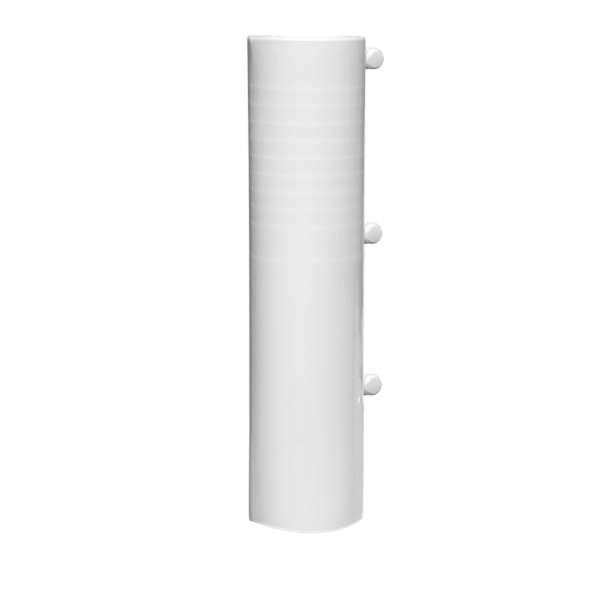

X4116 1 P Trap Cover Extension
X4116 1 Supply Riser Cover Extension

Approved Material Testing

• UPC and IAPMO PS 94 2001A

• ASTM D635 and ATB 0 5 Flame Spread Requirement

• ASTM D2240 Physical Properties

• ASTM D638 Tensile Strength and Elongation

Codes & Standards Compliance

• ADA 4.19.4 and ABA 606.5 revision

• ICC and ANSI A117.1, Section 606.6

• Meets 2015, 2018 and 2021 IPC 404.3, UPC 403.3 and SPC Plumbing Codes

• Meets Code Required ASTM C1822, Type III

• Meets ASME A112.18.9

• UPC and IAPMO PS 94

POP Box

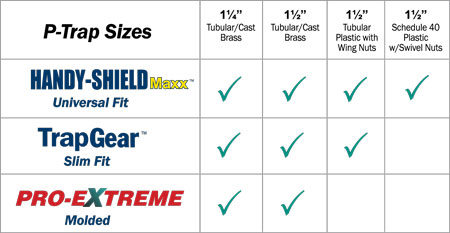

Size Guide

Design Highlights
