ADA Compliant Under-Lavatory Tubular Covers are designed for exposed plumbing in bathrooms.

The Universal-Fit Design covers brass and plastic tubular and accommodates both 1-1/4" and 1-1/2" tubular piping. Handy-Shield Maxx fast and easy installation with a Modern look.
Skip to results list

Filters

24 items

Filter

Product Details

  • HANDY-SHIELD MAXX offers a superior high-gloss finish, Flame & Smoke Rated material, and a soft, flexible, anti-fungal, anti-microbial PVC system that is easy to install with Velcro fasteners.

  • The Universal Fit design with a longer tailpiece fits more installations and is cut-to-fit for custom sizing. Wider dimensions easily fit bulky, plastic Schedule #40 traps for an ADA compliant and professional-looking installation making extensions, pipe wrap and tape obsolete.

  • Non-sewn, fusion-bonded molded technology allows installers to custom cut-to-size leaving finished edges with material that won’t unravel for permanent, professional installations.

  • Valve and Supply Covers can flex a full 360° for installations over braided supplies and can also be trimmed to fit to any length.

Features

  • Modern Design/Universal Fit
  • PVC UV Inhibited, Anti-Microbial, Anti-Fungal
  • Fits Sch. 40 Traps & Flexible Braided Supplies

Easy Installation

1. Measure and cut to length.

2. Fit HANDY-SHIELD MAXX Cover over P-Trap or Valve & Supply.

3. Press Internal Velcro* Strips together.

4. For Extra Tamper Resistance, press and lock “Snap Fasteners” together through pre-punched holes.

5. For Adjustable (tighter) Fit, align “Snap Fasteners” where needed on each side of material, punch hole with “Snap Fastener”, press and lock together.

Model Numbers

Part Number Available Kits & Single Piece Products
2002 (2 pc. kit) 1 P-Trap, 1 Valve & Supply Cover
2003 (3 pc. kit) 1 P-Trap, 2 Valve & Supply Covers
2004 (4 pc. kit) 1 P-Trap, 2 Valve & Supply Covers, 1 Offset Cover
3011 1 P-Trap Cover
3021 1 Valve & Supply Cover (Standard)
3041 1 Offset Strainer Cover (Medium)

Approved Material Testing

  • ASTM E84 – Flame and Smoke
  • ASTM G21 – Anti-microbial and Anti-fungal
  • ASTM G153 – Weatherization and UV Exposure
  • ASTM E96 – Moisture Permeability
  • ASTM D570 – Tensile Strength
  • ASTM C177 - Thermal Conductivity & Thermal Resistance
  • ASTM C158 - Thermal Conductivity & Thermal Resistance
  • UPC/IAPMO PS 94-2012 (Heat Penetration & Water Resistance)

Codes & Standards Compliance

  • ADA 4.19.4/ABA 606.5 rev.
  • ICC/ANSI A 117.1 (sec. 606.6)
  • Meets 2015/2018/2021 IPC 404.3, UPC 403.3 & SPC Plumbing Codes
  • Meets Code Required ASTM C1822 (Type I) Fire Smoke Rated Material
  • Meets ASME A112.18.9
  • UPC/IAPMO PS 94

POP Bag

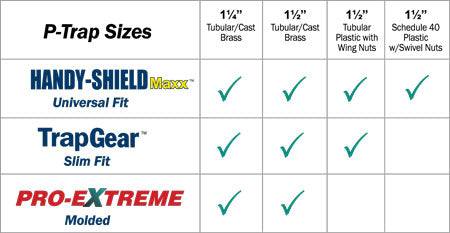

Size Guide

Design Highlights

Model Number Description Base Unit of Measure
2002A HANDY-SHIELD MAXX - 2PC KIT ALMOND EA
2002B HANDY-SHIELD MAXX - 2PC KIT BLACK EA
2002G HANDY-SHIELD MAXX - 2PC KIT GRAY EA
2002W HANDY-SHIELD MAXX - 2PC KIT WHITE EA
2003A HANDY-SHIELD MAXX - 3PC KIT ALMOND EA
2003B HANDY-SHIELD MAXX - 3PC KIT BLACK EA
2003G HANDY-SHIELD MAXX - 3PC KIT GRAY EA
2003W HANDY-SHIELD MAXX - 3PC KIT WHITE EA
2004A HANDY-SHIELD MAXX - 4PC KIT ALMOND EA
2004B HANDY-SHIELD MAXX - 4PC KIT BLACK EA
2004G HANDY-SHIELD MAXX - 4PC KIT GRAY EA
2004W HANDY-SHIELD MAXX - 4PC KIT WHITE EA
